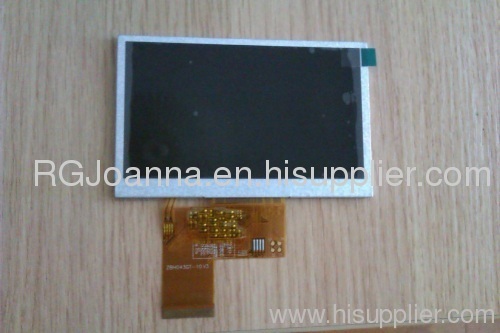

4.3 inch TFT LCD Panel with high Brightness AT043TN25 V.2-OEM manufacturer from China Shenzhen Rongen Technology Co., Ltd

Product Detail

Model No.: AT043TN25 V.2-OEM

Production Capacity: 10000pcs/month

Screen size:: 4.3

Luminance:: 500cd/m2

Aspect Ratio:: 16:9

Means of Transport: Ocean,Air

Delivery Date: 3-7 working days

Resolution:: 480*272

Contrast Ratio:: 500:1

4.3" TFT LCM display with/without TP, 4.3" TFT LCD Screen for Portable GPS

4.3" TFT LCM display with/without TP, 4.3" TFT LCD Screen for Portable GPS,

4.3 inch TFT LCD 480*272 resolution Innolux

Brand: Innolux

Screen size: 4.3"

Resolution: 480*272

Luminance: 500cd/m2

Contrast Ratio: 500:1

Aspect Ratio: 16:9

Operating Temperature: -20~70

Storage Temperature: -30~80

Pixel Pitch: 0.198x0.198mm (WxH)

Surface: Antiglare

Active Area: 95.04x53.856mm (WxH)

Bezel Area: 98.70x57.50mm (WxH)

Outline Dimension: 105.5x67.2mm (WxH)

Outline Depth: 2.9+-0.2mm

Touch Panel: Without TP

Response Time: 10/15(Typ.) (Tr/Td)

Viewing Angle: 70/70/50/70(Typ.)(CR>=10)(L/R/U/D)

Interface Type: FPC

Interface Pin Pitch: 0.5mm

Pins: 40pins

Backlight: LED
