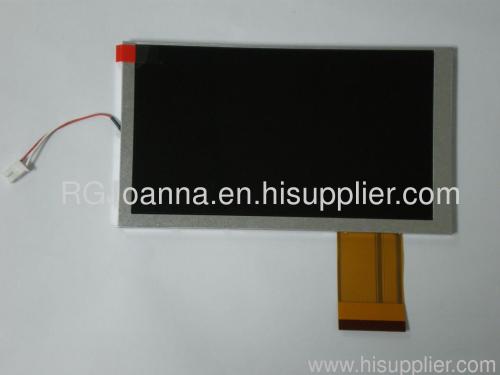

6.2 inch TFT LCD monitor Tianma (TM062RDH03)
Brand: Tianma
Screen size: 6.2"
Resolution: 800*480
Luminance: 400cd/m2
Contrast Ratio: 500:1
Aspect Ratio: 16:9
Operating Temperature: -20~70
Storage Temperature: -30~80
Pixel Pitch: 0.172x0.161mm (WxH)
Surface: Antiglare
Active Area: 137.4x77.28mm (WxH)
Bezel Area: 140.7x80.4 mm(WxH)
Outline Dimension: 155.2x 88.2mm (WxH)
Outline Depth: 4.9+-0.3mm (Typ.)
Touch Panel: Without TP
Response Time: 20(Typ.)(Tr/Td)
Viewing Angle: 70/70/60/70(Typ.)(CR>=10)(L/R/U/D)
Interface Type: FPC
Interface Pin Pitch: 0.5mm
Interface Pins: 60pins
Backlight: LED
LED lifetime: 50K hours
